3D Max 2021 Finally Removed Mental Ray, Here’s How To Avoid Scene Errors When Opening Older Scenes

gravatar
By joel
 ·
April 14, 2020
 ·
1 min read
Featured Image

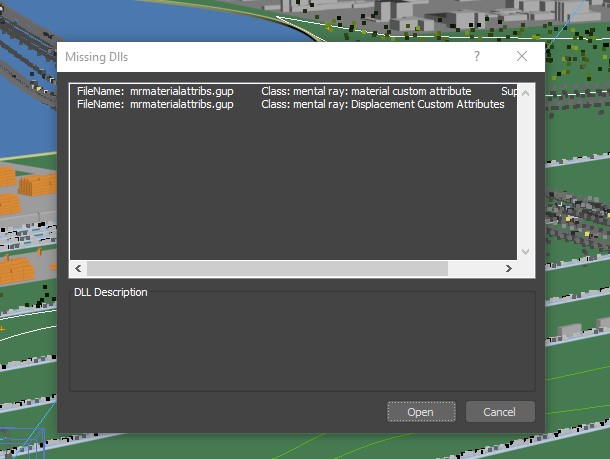

Finally, those Mental Ray legacy assets are removed from Max. The only issue is that Max and MR may have written some nodes and custom attributes into your older scenes. So when they are opened, you get some confusing prompts and may not be sure how to proceed. This may help you.

The first thing I did was google it of course. Autodesk: Missing Mental Ray DLL This older Autodesk link just confused me more because it just presumes you want what's missing.... but what if you don't?

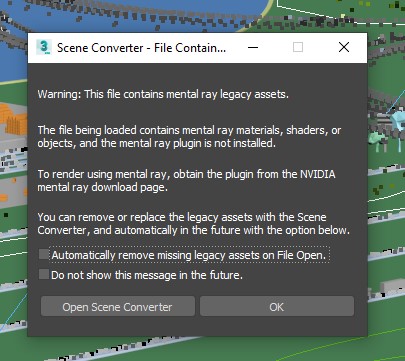

Just open the scene anyway. You don't care about the missing parameters yet. You just need to get it open to remove those errors and make the scene render without a hitch. At the prompt below, I chose Open Scene Converter.

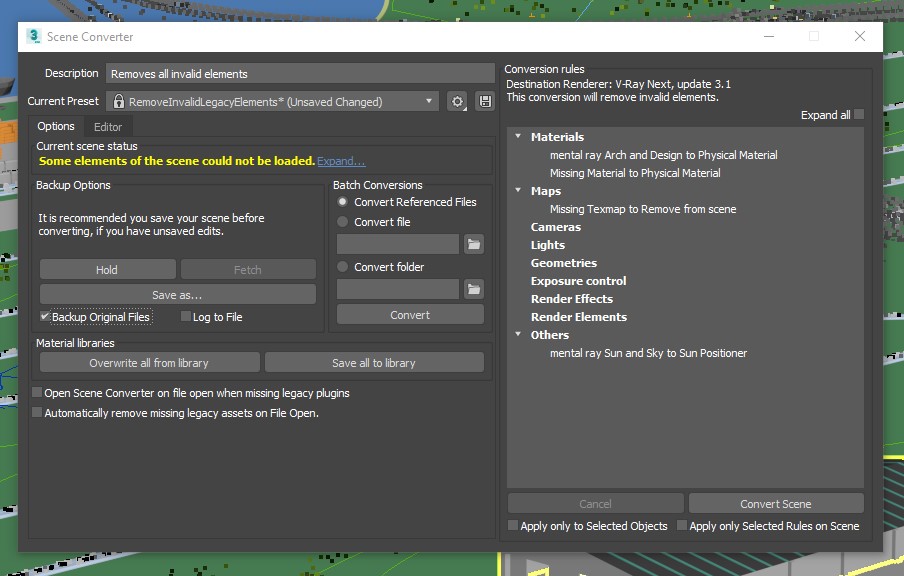

Then I switched the scene converter mode to the Remove Invalid Legacy Elements preset.

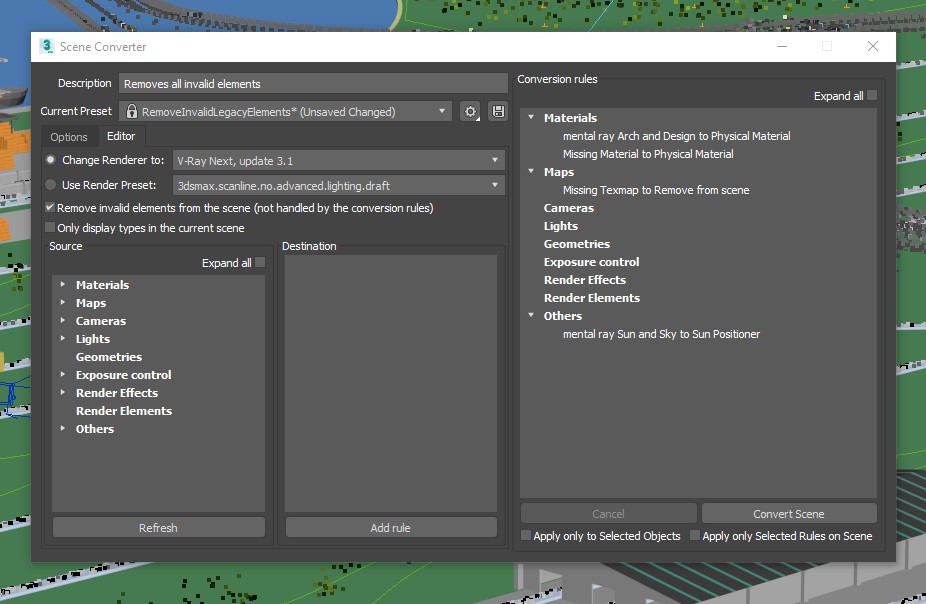

Then in the editor options, I made sure to change the renderer to VRay. I beleive it already was a VRay scene, but I did this to assure other misc nodes assigned to the old renderer get swapped too.

Then I just hit Convert Scene and didn't have any more prompts or issues after saving and opening.

Viola. Now go get back to work. 🙂

Tagged: 3D Max · Legacy · Max 2021 · Mental Ray · VRay
Comments
Because you don’t have folder from Max 2020 with NVIDIA files.
Put this (NVIDIA) folder to C:\Program Files\Autodesk\3ds Max 2021\Plugins
Then you be happy!
_link to my copy
https://1drv.ms/u/s!AtrESfGiGVPArPMjfPxgOMnd95OqEA?e=Nlx5BQ
Chris Mighton
This is awesome but have you found a way to stop max from converting all materials to physical materials and instead keep the VRay materials in place?
Unfortunately no I have not.
Alex Marks
3ds max 2021 doesn’t have an NVidia folder so you need to point it to the 2020 version.
Go to “C:\Users\\AppData\Local\Autodesk\3dsMax\ 2021 – 64bit\ENU
find the Plugin.User.Settings
make sure it looks like this:
[Directories]
Additional MAX plug-ins=C:\Program Files\Autodesk\3ds Max 2021\PlugIns\
Additional MAX plug-ins NVIDIA=C:\Program Files\Autodesk\3ds Max 2020\PlugIns\NVIDIA\Plugins\
[Help]
P_Man
I tried this, but the dll missing keeps happening
Perhaps it is using a reference, and that reference has to be opened and saved again with this method as well? I haven’t had issues since using this besides in cases like that.
